S6700-32QF
32-Port 100G Datacenter Switch
Full 100G leaf/ToR switch with 32× 40/100G QSFP28 ports and 3.2 Tbps capacity, with large buffers, M-LAG and modular power and fans.
- 32× 40/100G QSFP28, 2× 10G SFP+, console, OOB management, USB
- Network Interface
- 3.2 Tbps
- Switching Capacity
- 2800 Mpps
- Packet Forwarding
| Network Interface | 32× 40/100G QSFP28, 2× 10G SFP+, console, OOB management, USB |
|---|---|
| Switching Capacity | 3.2 Tbps |
| Packet Forwarding | 2800 Mpps |
| RAM / SSD | 8 GB RAM / 128 GB SSD |
| Port Buffer | 32 MB |
The S6700-32QF is a new-generation full 100G Ethernet switch designed for enterprise data center and campus LAN networks, providing high-throughput, high-density 100GE interfaces with larger buffers and lower latency.
32× 40/100G QSFP28
High-density 100GE interfaces with 3.2 Tbps switching capacity.
Lossless burst buffering
32 MB port buffer absorbs burst flows without packet loss.
M-LAG link aggregation
Cross-device link backup for resilient virtualized fabrics.

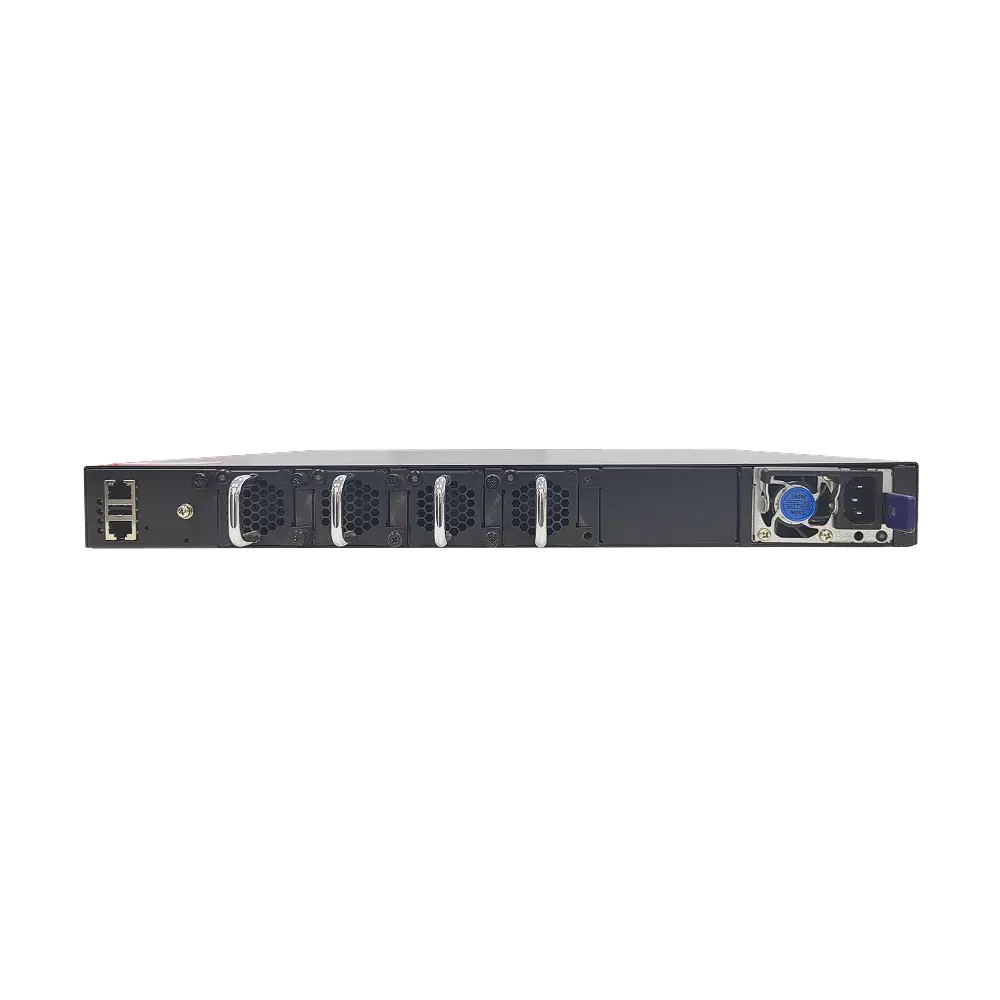

Modular redundancy
Pluggable redundant power and fans with overvoltage-hardened components.
Leaf-spine ready
Pairs with S6700-32CQ spines; also suits aggregation or core roles.
